Latest model Yellow Box YBX Speedo Recalibrator

New product for October 2021
In 1999 we created the worlds first digital speedometer recalibrator!
Over the last 22 years we have continually improved our product...
and now we are proud to release our most technologically advanced recalibrator;





Yellow Box YBX features

Fully compatible with standard speedo systems (Hall-effect, reed switch, inductive coil sensor systems)

Powerful new 32bit microchip gives precision correction

Instant response with no speedo lag

Switch adjustment for instant "set and forget" convenience

Dedicated speed sensor green indicator light

Dedicated red light confirms the switch settings

Instant switch selection of output signal type

Micropower device - can be powered directly from vehicle speed sensor

Can correct speedometer, or tachometer

Super-tough yellow molded plastic body

Tiny lightweight design

Still has our famous 10 year replacement warranty


10 Year Warranty
Like all previous Yellow Box versions, this is a high quality product produced
in Australia by craftsmen. We are proud of our quality control and extensive
testing during manufacture and we back this up with our 10 Year Warranty.



If your Yellow Box fails within 10 years of purchasing we will replace it
with a new product. You pay the postage to us, we pay the return postage.


Speedo correction

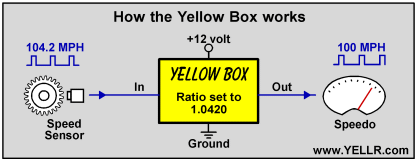

The Yellow Box unit is installed permanently in the vehicle and performs real-time
correction of the speedometer signal.

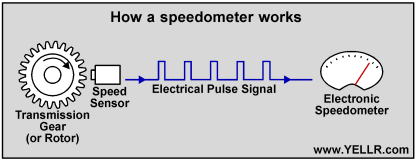

The Yellow Box receives electrical pulses from the vehicle speed sensor.
The high-speed microcontroller (tiny computer) inside the Yellow Box uses
our proprietary software to precisely correct the signal pulses in real time.



With only 4 wires the Yellow Box is a fairly simple installation. Plug-n-play harnesses
are available for many motorcycles, older 4WDs, and some sportscars, but in other
models you will need to splice the Yellow Box into the speedo sensor wiring and
provide +12volt (or +5volt) power and ground.

NOTE! The Yellow Box has been very carefully tested before it leaves
our factory and is guaranteed to be working. Installation in the vehicle
requires a certain amount of expertise so please consider using an auto
electrician if you think you may have trouble installing it.

We can only provide a small amount of tech support time per customer,
so please check your installation carefully! Many vehicle forums have
Yellow Box installation guides available.


Instructions
Yellow Box YBX - General installation guides;



Using the Yellow Box YBX     Yellow Box - YBX 2021 Instructions
Installing the Yellow Box YBX     Yellow Box - General Splice Installation

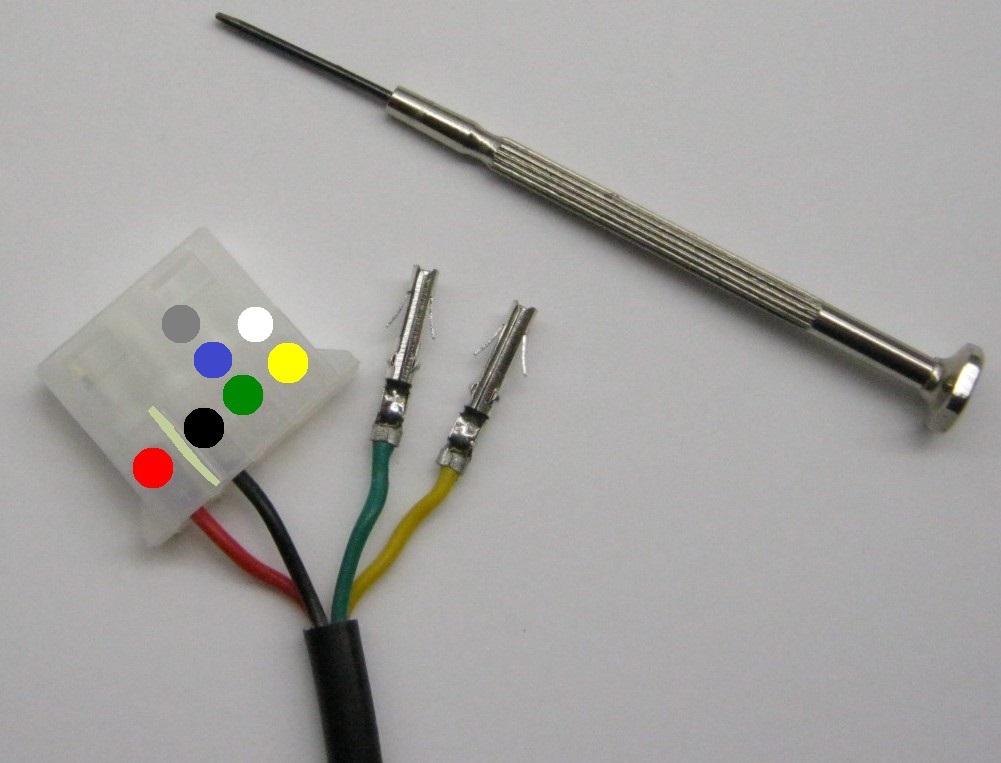

Yellow Box Harness wire colours     Yellow Box - Splice Harness wire colours

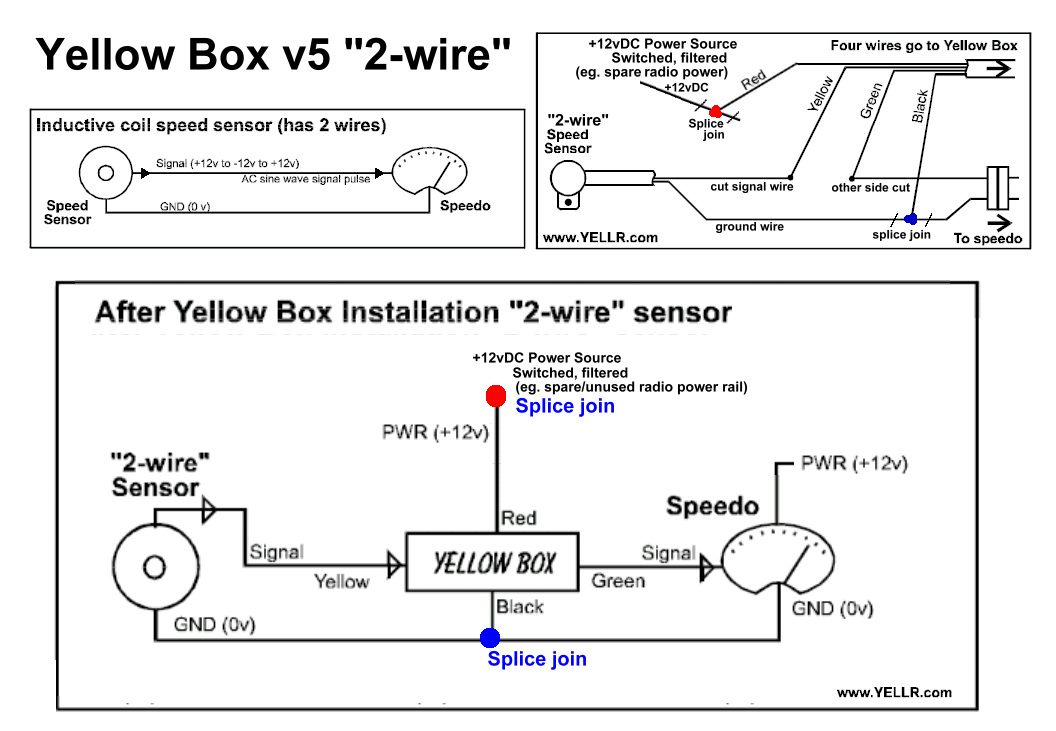

Install Diagram for "2-wire" sensors     Diagram for "2-wire" inductive coil sensors


Specifications

Power supply DC voltage; 5v to 14.5v (12v automotive)

Power supply current; Typically under 4 mA

Input signal; 2v to 20v DC squarewave, (or) 2v to 30v AC sinewave

Output signal; square / sine (switch selectable)

Freq range; 1Hz to 6000Hz (all standard speedo and tacho types)

Minimum correction ratio; 1:10

Maximum correction ratio; 10:1

Physical size; approx 58 x 43 x 18 mm (2.25 x 1.7 x 0.7 inch)

Weight; 27 g (1 oz)


Ordering
Yellow Box YBX with Splice Harness - price $139.95 USD
Yellow Box YBX with Plug-n-play Harness - price $169.90 USD

Order Yellow Box Now!
